PU-323 is a one-component, low-modulus polyurethane sealant that cures on exposure to atmospheric humidity. It possesses excellent adhesion to all typical construction materials such as cement-based materials, brick, ceramic, glass, wood, galvanized and painted sheet iron, and various plastics.

​

Typical Applications

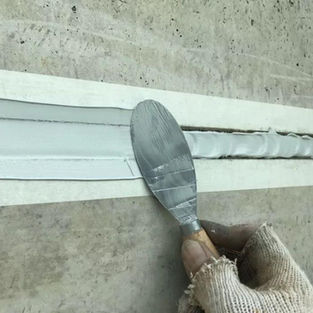

● Sealing of expansion and settlement joint of house building, plaza, road, airport runway, anti-wall, bridges and tunnels, building doors and windows, etc.

● Sealing of upstream face crack of drainage pipeline, drains, reservoirs, sewage pipes, tanks, silos, etc.

● Sealing of through holes on the various wall and at floor concrete

● Sealing of joints of prefab, side fascia, stone and color steel plate, epoxy floor, etc.

● Sealing and bonding of ventilation ducts, gutters, and spouts, etc. 

● Sealing building joints, as well as tunnel expansion and settlement joints;

● Sealing various holes in walls and floors;

● Sealing drains reservoirs, sewage pipes, and other gaps that total water immersion, frosty or moist surface.

● Sealing joint of concrete external walls

●Sealing joint of artificial panels. Suitable for sealing of joint between aluminous gusset plate and cement external wall.

● Sealing and waterproofing expansion joint of the concrete exterior wall.

● Sealing and bonding reserved joints of the metal curtain wall.

● Sealing joints between aluminum alloy window frames and concrete.

● Bonding concrete and cement walls joints.

​

Key Features

• Weather resistance, good extrudability, non-powdering, and cracking.

• One-component,excellent extrusion,no-sag,easy construction.

• Low modulus, high movement-resistance.

● The new and used sealant has good compatibility, easy to repair

●Weather resistance, good durability, no pulverization, no cracking.

●.Excellent extrusion, no-sag, easy construction.

●Moisture-cure, no cracking

●Bonding well with many substrates, no corrosion, and pollution to the substrate

●One component, convenient to apply, non-poisonous and odorless after curing, green and environmental

●Excellent sealing and waterproof performance;

●Indoor and outdoor applications for pedestrian and traffic areas

●Superior durability and tear resistance

● Paintable and polishable

​

Technical Data Sheet

Main raw material: Polyurethane

Color:                     Black/white/gray, paste

Tack free time:        ＜3Hrs

Curing speed :        3~5mm/ 24hrs

Hardness:                25±5 Shore A

Elongation at Break:   ≥600%

Volatile content：         ≤4%

Tensile modulus：       ≤1.0Mpa

Application temperature: 5~35°C

Service temperature:    -40~80 °C

Temperature resistance: Up to 1-hour short time, 150 °C

Shelf life:                   9 months



∎Chemical Resistance

●PU-3230 is excellently resistant to freshwater, saltwater, sewage water, and acids.

●Temporarily resistant to fuels, mineral oils, vegetable, and animal fats and oils.

●Not resistant to organic acids and caustic solutions or solvents.

●The above information is offered for general guidance only. For more professional questions, please consult MAXTECH service.



Packing Specification

●Cartridge       310ml

●Sausage        400ml

●Sausage        600ml

●Pail/Drum      240kg

 20pcs per box , 2 boxes per Carton

​

Storage

When stored at 5~25°C, humidity ≤50%RH in the original unopened containers, this product has a usable life of 9 months from the date of production. Do not store at temp. over 25°C, humidity over 80%RH.

Transportation: moisture-proof, prevent the rain, prevent sunscreen, anti-high temperature, away from heat, handle with care, crush or collision is prohibited.

​

∎Directions for Use

Tool: Manual or pneumatic plunger caulking gun

1. Cleaning: Clean and dry all surfaces by removing foreign matter and contaminants such as oil dust, grease, frost, water, dirt, old sealants and any protective coating.

2. For cartridge

   1. Cut the nozzle to give the required angle and bead size

   2. Pierce the membrane at the top of the cartridge and screw on the nozzle

   3. Place the cartridge in an applicator gun and squeeze the trigger with equal strength

3. For sausage

   1. Clip the end of the sausage and place in barrel gun

   2. Screw end cap and nozzle on to barrel gun

   3. Using the trigger extrude the sealant with equal strength

​

∎Attention of operation

1. Choose this product, primer, activator, and other matching product, must have a bonding test before bonding the materials, to ensure that they have good compatibility. At the same time, before application, should guarantee that the sealant, primer, and activator are in the warranty period.

2. Please strictly according to the application process, any violation of the application operation may cause bonding failure. This product is innocuous after curing completely, but before curing, please avoids contacting with eyes and skin. In case of eyes and skin contact, wash immediately and thoroughly with soap and water. If the situation is serious, please go to see a doctor immediately.



PU-323 Construction PU sealant is a high-performance compound having more expensive ingredients, little shrinkage, excellent weathering and UV resistance, and providing long service life cycles from 10 – 20 years.

​

More information, TDS is here, please check.
